Android Head Unit & Backup Camera Installation

Reply



Thread Tools Search this Thread
Old 10-10-2016, 09:41 AM   #381
bjmsam
CF Senior Member
Thread Starter

bjmsam's Avatar

Member Since: May 2014
Location: Mount Airy MD
Posts: 450
Thanked 14 Times in 14 Posts
Default

Quote:
Originally Posted by 383 View Post
I've tried 4 different elm's and although they're cheap I'm done tossing money at this thing. I'm just looking for confirmation that they actually work
Well, I stand by my recommendation on page 1 of this thread.
bjmsam is offline   Reply With Quote
Old 10-10-2016, 10:00 AM   #382
383
CF Senior Member

383's Avatar

Member Since: Jun 2010
Location: SSM CT
Posts: 1,812
Thanked 18 Times in 16 Posts
Default

Quote:
Originally Posted by bjmsam View Post
Well, I stand by my recommendation on page 1 of this thread.
hmmm. That way the 1st one I tried but only connects 10% of the time after 10+ attempts. The one I got was red though .... Ill have to Look into what one I actually got.
383 is offline   Reply With Quote
Old 10-10-2016, 10:36 AM   #383
bjmsam
CF Senior Member
Thread Starter

bjmsam's Avatar

Member Since: May 2014
Location: Mount Airy MD
Posts: 450
Thanked 14 Times in 14 Posts
Default

Quote:
Originally Posted by 383 View Post
hmmm. That way the 1st one I tried but only connects 10% of the time after 10+ attempts. The one I got was red though .... Ill have to Look into what one I actually got.
That is the OBDLink MX Wi-Fi. My OBDLink MX Bluetooth connects 100% of the time.

bjmsam is offline   Reply With Quote
Old 10-25-2016, 06:38 PM   #384
TheSenator
CF Senior Member

TheSenator's Avatar

Member Since: Sep 2015
Location: Houston Tx
Posts: 101
Thanked 13 Times in 10 Posts
Default

Joying has new 2gb RAM and 32GB memory units on the way to the market. Shipping says ETA of late November.

Guess my 1gb unit will be right back on the shipping truck back to Amazon...
TheSenator is offline   Reply With Quote
Old 11-02-2016, 09:22 PM   #385
TheSenator
CF Senior Member

TheSenator's Avatar

Member Since: Sep 2015
Location: Houston Tx
Posts: 101
Thanked 13 Times in 10 Posts
Default

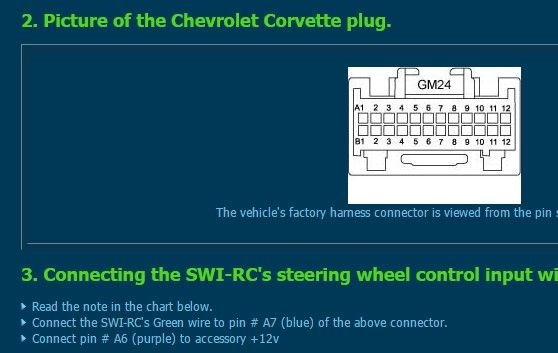

Can someone who has used the OS2X module, tell me how they wired up the SWC wires?

EDIT: I found the GR w/WH wire and the Yellow (battery) on the PAC harness. I re-read the 1st post and it says to wire the gr/wh wire to KEY 1, but then the yellow to GND lead. Shouldn't the yellow be hooked to ACC +12v?



Last edited by TheSenator; 11-02-2016 at 10:03 PM.
TheSenator is offline   Reply With Quote
Old 11-03-2016, 04:52 AM   #386
bjmsam
CF Senior Member
Thread Starter

bjmsam's Avatar

Member Since: May 2014
Location: Mount Airy MD
Posts: 450
Thanked 14 Times in 14 Posts
Default

Quote:
Originally Posted by TheSenator View Post
Can someone who has used the OS2X module, tell me how they wired up the SWC wires?

EDIT: I found the GR w/WH wire and the Yellow (battery) on the PAC harness. I re-read the 1st post and it says to wire the gr/wh wire to KEY 1, but then the yellow to GND lead. Shouldn't the yellow be hooked to ACC +12v?
You might be confusing PAC side vs. connector side of the two cut PAC harness wires.

Quote:
Originally Posted by bjmsam View Post
The PAC has two types of steering wheel control (SWC) connections; a mini phono jack and a single blue/yellow wire. It also has a 10-position switch that determines SWC signal compatibility with mainstream HUs. This HU has two wires labeled KEY1 and KEY2 and according to the documentation works with only resistive signals like the Corvette's (see Volume 1 of the shop service manual for schematic). I tried the single wire, and I cut off the phono jack and tried the red and white wires, and I tried all ten switch settings, but nothing worked and I couldn't make sense of the PAC SWC signals with my multimeter. I solved it by cutting the yellow and green/white wires from the PAC that correspond to the purple (6) and dark blue (7) wires from the car and connecting them to the KEY1 and GND leads from the HU. The HU immediately recognized the buttons and made it easy to map them to the desired functions (my 1-6 button now controls mute).



Quote:
Originally Posted by bjmsam View Post
The PAC harness brings its power in on the yellow wire and loops it back out on pin 6 to power the car SWC (purple wire on the car side of the connector). I believe yellow is constant power rather than switched, so I didn't care for that approach anyway (why energize the car SWC resistor tree when the ignition is off?). Cut that loop and connect the outbound yellow wire on pin 6 to the KEY1 wire. The SWC circuit becomes:

HU KEY1 <--> connector side PAC yellow pin 6 <--> car SWC purple pin 6 (+)
HU GND <--> connector side PAC green/white pin 7 <--> car SWC dark blue pin 7 (-)

Last edited by bjmsam; 11-03-2016 at 04:56 AM. Reason: typo
bjmsam is offline   Reply With Quote
The Following User Says Thank You to bjmsam For This Useful Post:
TheSenator (11-03-2016)
Old 11-03-2016, 10:59 AM   #387
TheSenator
CF Senior Member

TheSenator's Avatar

Member Since: Sep 2015
Location: Houston Tx
Posts: 101
Thanked 13 Times in 10 Posts
Default

Thanks!!! You are correct, I was backwards. After the drive from NOLA to Houston yesterday, my brain was apparently not functioning properly. The last quote was exactly what I was missing.

Sidenote - the new 2GB RAM and 32GB Flash Joying unit is FAST. Very Fast. I got everything else wired in and was able to play around a bit with the unit. UI is good enough, and I can't wait to pair my MX I had from my truck.
TheSenator is offline   Reply With Quote
Old 11-07-2016, 05:12 PM   #388
CitznFish
CF Senior Member

CitznFish's Avatar

Member Since: Jun 2005
Posts: 364
Thanked 3 Times in 2 Posts
Default

Bookmarked for my installation attempt this weekend









and with a backup camera




I've never installed a car stereo in my life. I've researched how to do this and bought all the items needed (PAC module, ground loop isolators, Double din installation kit. I imagine this 3 hour job will take me at least 8.

Pretty excited to update the stereo on my C6..
CitznFish is offline   Reply With Quote
Old 11-07-2016, 05:17 PM   #389
CitznFish
CF Senior Member

CitznFish's Avatar

Member Since: Jun 2005
Posts: 364
Thanked 3 Times in 2 Posts
Default

Quote:
Originally Posted by TheSenator View Post
Thanks!!! You are correct, I was backwards. After the drive from NOLA to Houston yesterday, my brain was apparently not functioning properly. The last quote was exactly what I was missing.

Sidenote - the new 2GB RAM and 32GB Flash Joying unit is FAST. Very Fast. I got everything else wired in and was able to play around a bit with the unit. UI is good enough, and I can't wait to pair my MX I had from my truck.
Shoot. I just ordered a cheap-o 1GB unit from Corehan. ($197.00) I wonder if it is worth it to return and get this other one instead.
CitznFish is offline   Reply With Quote
Old 11-07-2016, 08:27 PM   #390
Naldinator
CF Senior Member

Naldinator's Avatar

Member Since: Aug 2015
Location: Cumming GA
Posts: 331
Thanked 21 Times in 17 Posts
Default

Quote:
Originally Posted by CitznFish View Post
Bookmarked for my installation attempt this weekend






I've never installed a car stereo in my life. I've researched how to do this and bought all the items needed (PAC module, ground loop isolators, Double din installation kit. I imagine this 3 hour job will take me at least 8.

Pretty excited to update the stereo on my C6..
Not that hard. Don't be a fool like me and cut off you PAC adapter rca jacks. Still do not know what I was tinkling there.

Last edited by Naldinator; 11-07-2016 at 08:53 PM.
Naldinator is offline   Reply With Quote
Old 11-08-2016, 12:27 PM   #391
CitznFish
CF Senior Member

CitznFish's Avatar

Member Since: Jun 2005
Posts: 364
Thanked 3 Times in 2 Posts
Default

Quote:
Originally Posted by Naldinator View Post
Not that hard. Don't be a fool like me and cut off you PAC adapter rca jacks. Still do not know what I was tinkling there.
LOL, I actually read your posts about that the other day. I will definitely leave those as-is.
CitznFish is offline   Reply With Quote
Old 11-13-2016, 08:41 PM   #392
CitznFish
CF Senior Member

CitznFish's Avatar

Member Since: Jun 2005
Posts: 364
Thanked 3 Times in 2 Posts
Default

Spent about ten hours doing the entire job. Never installed an aftermarket radio before. Love having Waze, Spotify, and the beck up camera. The unit came with a usb on a long cord, wasn't sure what I was going to do with that. That's the only thing I think I could have done a little better if I had the proper tools.


CitznFish is offline   Reply With Quote
Old 11-17-2016, 03:27 AM   #393
Z2Z
CF Senior Member

Z2Z's Avatar

Member Since: Dec 2012
Location: Mesa/Phoenix Arizona
Posts: 321
Thanked 30 Times in 26 Posts
Default

Quote:
Originally Posted by CitznFish View Post
Spent about ten hours doing the entire job. Never installed an aftermarket radio before. Love having Waze, Spotify, and the beck up camera. The unit came with a usb on a long cord, wasn't sure what I was going to do with that. That's the only thing I think I could have done a little better if I had the proper tools.
Looks great! I took one USB and ran it into the sender console and ran the other one into the glovebox.
Z2Z is offline   Reply With Quote
Old 12-10-2016, 05:33 AM   #394
bjmsam
CF Senior Member
Thread Starter

bjmsam's Avatar

Member Since: May 2014
Location: Mount Airy MD
Posts: 450
Thanked 14 Times in 14 Posts
Default

Quote:
Originally Posted by Minkster View Post
Seen this in several posts, a few questions:
Those are among the questions answered in more detail earlier in this thread for the model I installed in 2014 as well as newer models installed by other members of the forum, but to summarize briefly:

Quote:
Originally Posted by Minkster View Post
-Can you use an adaptor to connect to the OEM GPS antenna?
yes

Quote:
Originally Posted by Minkster View Post
-Where do you download or acquire updated maps for the SD card?
depends on the nav app that you choose

Quote:
Originally Posted by Minkster View Post
-How much area does the SD card maps cover, do they have POI's etc?
iGo and Sygic are among the options that have offline maps and POIs with worldwide coverage

Quote:
Originally Posted by Minkster View Post
-Can this be used without having a smart phone or data plan?
yes

Quote:
Originally Posted by Minkster View Post
-Can it display directions on the HUD, and/or voice commands?
no HUD directions, voice commands depends on the nav app that you choose

Quote:
Originally Posted by Minkster View Post
-Bluetooth for a cellphone, and can you use the vehicles OEM mic?
yes bluetooth, I have seen posts on use of the OEM mic in other threads, but I use the HU's mic

Quote:
Originally Posted by Minkster View Post
-Sound quality?
mine is wired to the OEM amp and speakers and sounds at least as good as the OEM HU (and offers far more options for equalization and other acoustic customization)

Quote:
Originally Posted by Minkster View Post
-USB?
yes
bjmsam is offline   Reply With Quote
Old 01-05-2017, 07:12 AM   #395
dreskiluv
Junior Member

dreskiluv's Avatar

Member Since: Dec 2016
Location: Pembroke Pines Florida
Posts: 44
Thanks: 0
Thanked 2 Times in 2 Posts
Default

Man this was great reading and explanation w/pix only wish this was for Iphone (almost makes me want to get Android "almost")
dreskiluv is offline   Reply With Quote
Old 01-05-2017, 08:11 AM   #396
*El Ocho*
CF Senior Member

*El Ocho*'s Avatar

Member Since: Aug 2008
Location: Miami FL
Posts: 596
Thanked 24 Times in 22 Posts
Default

yeah,I don't think Apple is making head units yet, lol.

But as an iphone user (which I love), I have to admit that I'm happy with my Android HU.
*El Ocho* is offline   Reply With Quote
Old 01-05-2017, 09:05 AM   #397
bjmsam
CF Senior Member
Thread Starter

bjmsam's Avatar

Member Since: May 2014
Location: Mount Airy MD
Posts: 450
Thanked 14 Times in 14 Posts
Default

Quote:
Originally Posted by dreskiluv View Post
Man this was great reading and explanation w/pix only wish this was for Iphone (almost makes me want to get Android "almost")
I'm not sure what is meant by "for Iphone." It is Android but works with Android, iPhone, Windows Phone, etc.
bjmsam is offline   Reply With Quote
Old 02-16-2017, 06:12 PM   #398
bjmsam
CF Senior Member
Thread Starter

bjmsam's Avatar

Member Since: May 2014
Location: Mount Airy MD
Posts: 450
Thanked 14 Times in 14 Posts
Default

I remain so pleased with the Android head unit that I installed in my C6Z nearly three years ago that I just bought another one, this time for my 2009 Toyota Rav4 Sport V6. These are improving all the time... this one (C1067106A3 from "BonRoad") has double the CPU cores, twice the RAM and ROM, higher resolution, custom form factor and plug-and-play installation (took less than 30 minutes total), all for only $287. Impressive!


Last edited by bjmsam; 02-18-2017 at 08:32 AM. Reason: Wow, it has been not two years, but three!
bjmsam is offline   Reply With Quote
The Following User Says Thank You to bjmsam For This Useful Post:
Trios (02-17-2017)
Old 02-17-2017, 12:27 PM   #399
Trios
CF Senior Member

Trios's Avatar

Member Since: Mar 2010
Location: Seattle WA
Posts: 1,618
Thanked 11 Times in 10 Posts
Default

Quote:
Originally Posted by bjmsam View Post
I remain so pleased with the Android head unit that I installed in my C6Z nearly two years ago that I just bought another one, this time for my 2009 Toyota Rav4 Sport V6. These are improving all the time... this one has double the CPU cores, twice the RAM and ROM, higher resolution, custom form factor and plug-and-play installation (took less than 30 minutes total), all for only $287. Impressive!



Is it instant-on yet or still a ~30 second boot time?

Last edited by Trios; 02-17-2017 at 12:28 PM.
Trios is offline   Reply With Quote
Old 02-17-2017, 01:35 PM   #400
bjmsam
CF Senior Member
Thread Starter

bjmsam's Avatar

Member Since: May 2014
Location: Mount Airy MD
Posts: 450
Thanked 14 Times in 14 Posts
Default

Quote:
Originally Posted by Trios View Post
Is it instant-on yet or still a ~30 second boot time?
Android still must boot, which happens a bit faster on this unit (closer to 20 seconds). As with the older unit in my C6Z, only the backup camera is available immediately (presumably because the OS is bypassed for that function). It's particularly annoying in this case because the Rav4 cuts power long enough to force a reboot when switching from ACC to START to ON. I am preparing to add a capacitor and diode to keep it running for a few seconds when power is cut; perhaps a similar approach could be employed to anticipate the need to boot when entering the vehicle (e.g.- tie in to the dome light circuit)...

bjmsam is offline   Reply With Quote
Go Back   CorvetteForum - Chevrolet Corvette Forum Discussion >
Reload this Page
  • Android Head Unit & Backup Camera Installation
  •

    Reply

    Related Topics
    Thread Thread Starter Forum Replies Last Post
    Barrett-Jackson - Las Vegas 2016 ///ADMAN C7 General Discussion 28 10-17-2016 07:29 AM
    Z51 silver OEM spoiler MIGHTYM0USE C7 Parts for Sale/Wanted 37 03-21-2016 12:05 PM
    Church of The Holy Donut, Burtonsville, MD 68ragtop69 Northeast 7 12-30-2015 10:06 AM
    [80s GM] Was told only 1000 of these were made... jd Off Topic 85 11-06-2015 02:25 PM
    White Noise after Kenwood HU Install DNX571HD snuddenstang Audio/Electronics 4 10-09-2015 12:37 PM


    Thread Tools Search this Thread
    Search this Thread:

    Click for Advanced Search

    Posting Rules
    You may not post new threads
    You may not post replies
    You may not post attachments
    You may not edit your posts

    BB code is On
    Smilies are On
    [IMG] code is On
    HTML code is Off
    Trackbacks are Off
    Pingbacks are Off
    Refbacks are Off

    Forum Jump


    All times are GMT -4. The time now is 10:00 PM.



    • Ask a Question
      Get answers from community experts
    Question Title:
    Description:
    Your question will be posted in:
